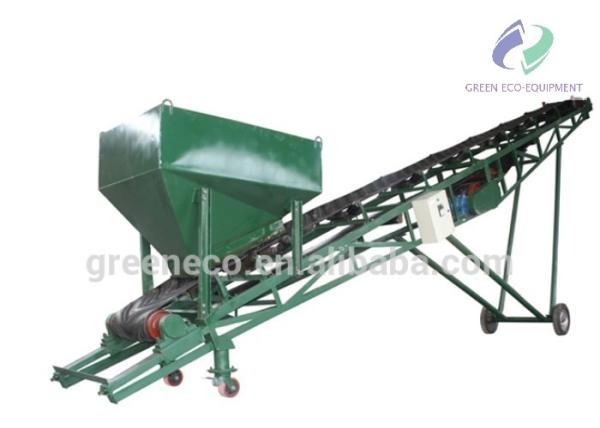

Flexible Mobile Hopper Belt Conveyor For Bulk Materail Mining Industry
Product Description
Flexible Mobile Hopper Belt Conveyor For Bulk Materail Mining Industry is widely used for conveying of bulk materials, such as grain, fertilizer, metallurgy, coal, transport, water and electricity, with advantage of large conveying capacity, simple in structure, convenient maintenance, low cost, strong versatility, etc.The materials of conveyor belt are usually rubber, plastics, PVC, PU and other materials. The frame materials are carbon steel, stainless steel, aluminum. The driving mode is gear motor or electric roller. It can convey with one conveyor, multiple conveyors, or form horizontal or inclined conveying system with other conveyors according to the requirements of the conveying process.
Main Parameters
| Item | DY400 | DY500 | DY650 | DY800 | DY1000 |
| Length of machine(m) | 3~20 |
| Belt width(m) | 400 | 500 | 650 | 800 | 1000 |
| Belt speed(m) | 0.4~1.25 |
| Conveying height | 6.52 |
| Conveying capacity | (m3/h) | 60 | 120 | 220 | 500 | 1000 |
| (t/h) | 40 | 80 | 150 | 200 | 300 |
| dip angle(°) | 0°~18° |
| Electric roller | Model | DY | DY | DY | DY | DY |
| Power(kw) | 2.2 | 2.2 | 3.0 | 4.0 | 7.5 |
Main Features
1. High efficiency.
2. Wide application.
3. Low cost.
4. Strong support.
5. Flexible design.
6. Firm structure.
Application
Big Throughput Long Distance Grain Fertilizer Belt Conveyor System is suitable for conveying grain, fertilizer, gravel, cement, coal, sand, clay, wood chips, etc.. which with a block size of not more than 550mm.
Details Show
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
Field Usage
